1.A.4.c ii - Agriculture/Forestry/Fishing: Off-Road Vehicles and Other Machinery

Under sub-category 1.A.4.c ii - Agriculture/Forestry/Fishing: Off-road Vehicles and other Machinery fuel combustion activities and resulting emissions from off-road vehicles and machinery used in agriculture and forestry are reported seperately.

Sector-specific consumption data is included in the primary fuel-delivery data are available from NEB line 67: 'Commercial, trade, services and other consumers' (AGEB, 2024) ¹⁾.

Table 1: Sources for primary fuel-delivery data

Following the deduction of energy inputs for military vehicles as provided in (BAFA, 2024) ²⁾, the remaining amounts of gasoline and diesel oil are apportioned onto off-road construction vehicles (NFR 1.A.2.g vii) and commercial/institutional used off-road vehicles (1.A.4.a ii) as well as agriculture and forestry (NFR 1.A.4.c ii) based upon annual shares derived from TREMOD MM (Knörr et al. (2024b)) ³⁾ (cf. superordinate chapter).

To provide more specific information on mobile sources in agriculture and forestry, the inventory compiler further devides NFR sector 1.A.4.c ii into 1.A.4.c ii (i) - NRMM in agriculture in and 1.A.4.c ii (ii) - NRMM in forestry.

Table 2: Annual percentual contribution of NFR 1.A.4.c ii to the primary fuel delivery data provided in NEB line 67

source: own estimations based on Knörr et al. (2024b) ^{4) 1} no gasoline used in agriculatural vehicles and mobile machinery

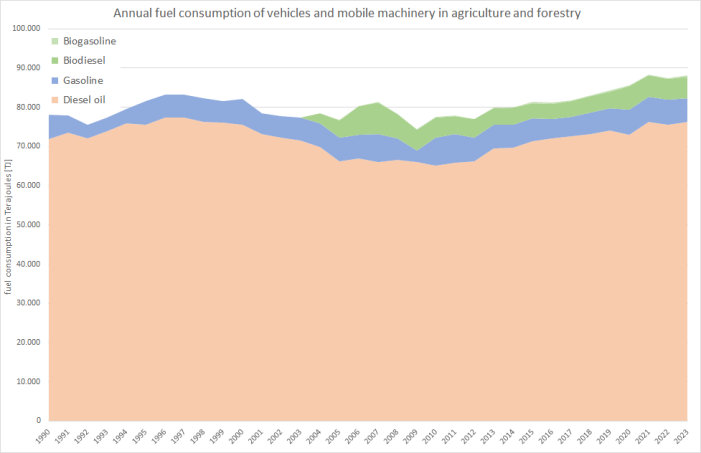

Table 3: Annual mobile fuel consumption in agriculture and forestry, in terajoules

The emission factors applied here are of rather different quality:

Basically, for all main pollutants, carbon monoxide and particulate matter, annual IEF modelled within TREMOD MM are used, representing the sector's vehicle-fleet composition, the development of mitigation technologies and the effect of fuel-quality legislation.

For Information on the country-specific implied emission factors applied to mobile machinery in agriculture and forestry, please refer to the respective sub-chapters linked above.

For information on the emission factors for heavy-metal and POP exhaust emissions, please refer to Appendix 2.3 - Heavy Metal (HM) exhaust emissions from mobile sources and Appendix 2.4 - Persistent Organic Pollutant (POP) exhaust emissions from mobile sources.

Table 4: Outcome of Key Catgegory Analysis for NFR 1.A.4.c ii

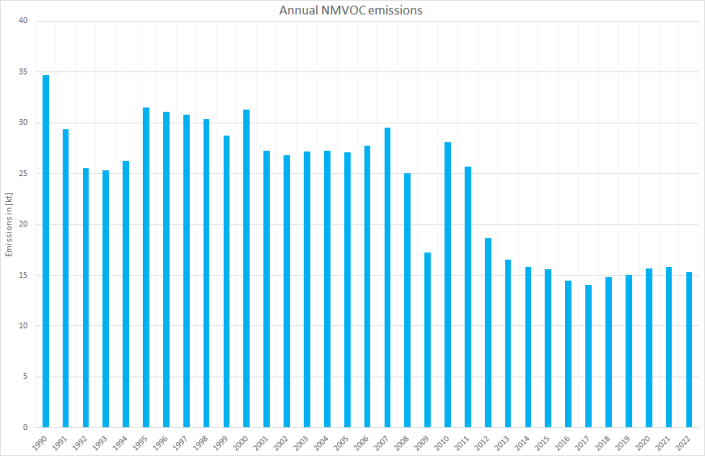

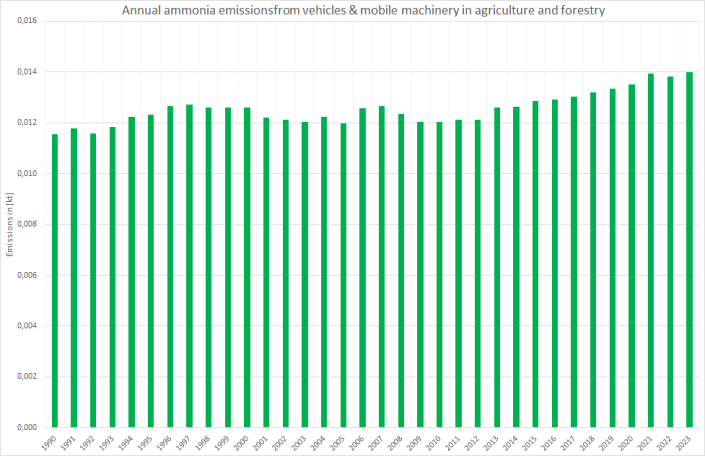

For all unregulated pollutants, emission trends directly follow the trend in fuel consumption.

Here, exemplary for cadmium, the extreme steps in emission estimates result from two effects:

(i) the annual amounts of gasoline fuels allocated to NFR 1.A.4.c ii depend on the amounts delivered to the military also covered in NEB line 67. (see superordinate chapter for further information). This approach results in strong declines in gasoline consumption after 2007 and 2011. In addition, in contrast to the main pollutants, all heavy-metal and POP emissions are calculated via a tier1 approach based on default EF from ⁵⁾.

Table 5: Development of gasoline consumption in NFR 1.A.4.c ii, in terajoules

(ii) All gasoline fuels allocated to NFR 1.A.4.c ii are used in 2-stroke-engines in forestry equipment. As the 2-stroke fuel also includes lubricant oil, the fuel's heavy metal content is significantly higher than that of 4-stroke gasoline (or diesel fuels). (see Appendix 2.3 for more information on the reporting of HM emissions.)

Table 6: Tier1 default emission factors applied to NRMM, in g/TJ

¹ values differ from EFs applied for fossil diesel oil to take into account the specific NCV of biodiesel
² including the HM of 1:50 lube oil mixed to the gasoline Hence, emission estimates reported for cadmium are significantly higher for years with higher gasoline use (in 2-stroke enignes).

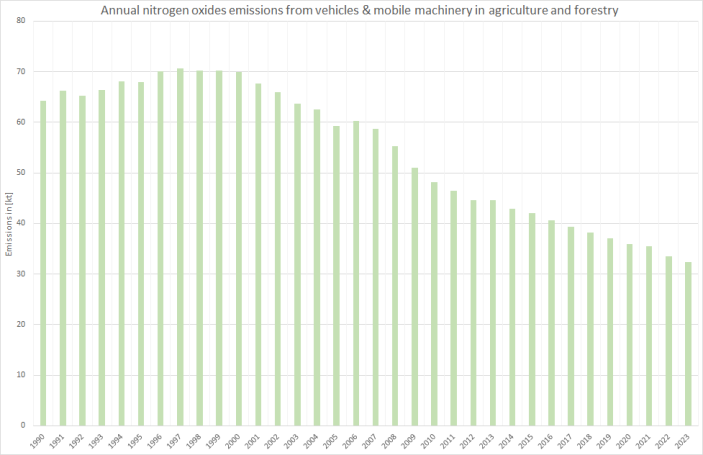

For all regulated pollutants, emission trends follow not only the trend in fuel consumption but also reflect the impact of fuel-quality and exhaust-emission legislation.

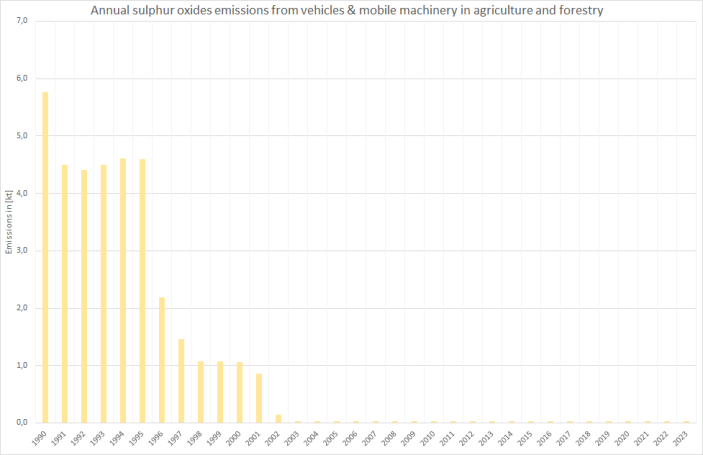

Here, emissions of sulphur oxides follow the step-by-step reduction of sulphur contents in liquid fuels, resulting in a reduction of over 99% since 1990:

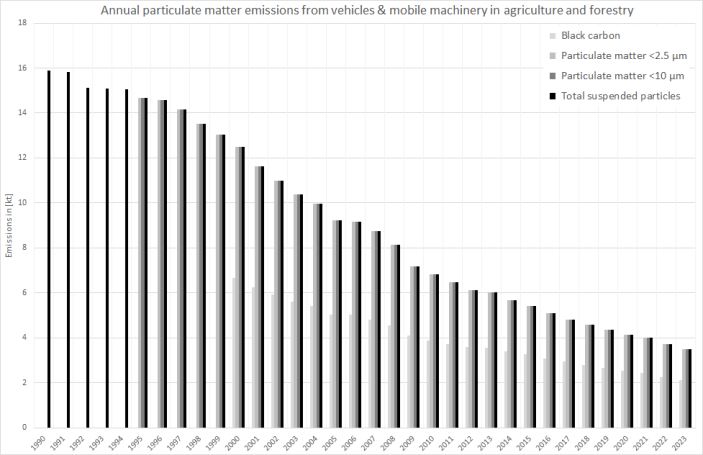

Over-all PM emissions are by far dominated by emissions from diesel oil combustion with the falling trend basically following the decline in fuel consumption between 2000 and 2005. Nonetheless, the decrease of the over-all emission trend was and still is amplified by the expanding use of particle filters especially to eliminate soot emissions.

Additional contributors such as the impact of TSP emissions from the use of leaded gasoline (until 1997) have no significant effect onto over-all emission estimates.

Compared to previous submissions, activity data has been recalculated for all years, but far less drastically as with the 2024 submission.

Here, as the consumption data for agricultural and forestry vehicles is estimated as part of the over-all amounts provided in row 67 of the National Energy Balance via percental shares, these shares have been revised as follows:

Table 7: Revision of annual percental shares of fuels consumed in both agriculture and forestry

Resulting from the revised annual shares, activity data have been re-calculated accordingly:

Table 8: Revision of annual activity data, in terajoules

For information on revised emission factors please refer to the sub-chapters on mobile sources in agriculture and forestry as linked above.

Uncertainty estimates for activity data of mobile sources derive from research project FKZ 360 16 023: “Ermittlung der Unsicherheiten der mit den Modellen TREMOD und TREMOD-MM berechneten Luftschadstoffemissionen des landgebundenen Verkehrs in Deutschland” by (Knörr et al. (2009)) ⁶⁾.

Uncertainty estimates for emission factors were compiled during the PAREST research project. Here, the final report has not yet been published.

Besides a routine revision of TREMOD MM, no specific improvements are planned.

Why are similar EF applied for estimating exhaust heavy metal emissions from both fossil and biofuels?

The EF provided in ⁷⁾ represent summatory values for (i) the fuel's and (ii) the lubricant's heavy-metal content as well as (iii) engine wear. Here, there might be no heavy metal contained the biofuels. But since the specific shares of (i), (ii) and (iii) cannot be separated, and since the contributions of lubricant and engine wear might be dominant, the same emission factors are applied to biodiesel and bioethanol.
