1.A.3.a ii (ii) - Domestic Civil Aviation: Cruise

Short description

Category Code Method AD EF
1.A.3.a ii (ii) T1, T2, T3 NS, M CS, D, M

Click to view Legend

Click to hide Legend

Method(s) applied
D Default
T1 Tier 1 / Simple Methodology *
T2 Tier 2*
T3 Tier 3 / Detailed Methodology *
C CORINAIR
CS Country Specific
M Model
* as described in the EMEP/EEA Emission Inventory Guidebook - 2019, in category chapters.
(source for) Activity Data
NS National Statistics
RS Regional Statistics
IS International Statistics
PS Plant Specific
As Associations, business organisations
Q specific Questionnaires (or surveys)
M Model / Modelled
C Confidential
(source for) Emission Factors
D Default (EMEP Guidebook)
CS Country Specific
PS Plant Specific
M Model / Modelled
C Confidential

NOx NMVOC SO2 NH3 PM2.5 PM10 TSP BC CO Heavy Metals PCDD/F B(a)P B(b)F B(k)F I(x)P PAH1-4 HCB PCBs
-/- -/- -/- -/- -/- -/- -/- -/- -/- -/- NE -/- -/- -/- -/- -/- NA NA

Click to view Legend

Click to hide Legend

L/- key source by Level only
-/T key source by Trend only
L/T key source by both Level and Trend
-/- no key source for this pollutant
IE emission of specific pollutant Included Elsewhere (i.e. in another category)
NE emission of specific pollutant Not Estimated (yet)
NA specific pollutant not emitted from this source or activity = Not Applicable
* no analysis done

In NFR category 1.A.3.a ii (ii) - Domestic Civil Aviation: Cruise emissions from domestic flights between German airports during cruise stage (above 3,000 feet of altitude) are reported.

In the following, information on sub-category specific activity data, (implied) emission factors and emission estimates are provided.

Methodology

Actitvity Data

Specific fuel consumption during cruise-stage is calculated within TREMOD AV as described in the superordinate chapter.

Table 1: annual jet kerosene & avgas consumption during cruise-stage, in terajoules

1990 1995 2000 2005 2010 2015 2016 2017 2018 2019 2020 2021 2022 2023
Kerosene 20,637 21,207 23,646 21,929 21,892 19,993 20,010 19,366 19,259 19,956 8,952 6,401 9,485 10,490
Avgas 1,833 858 843 523 427 429 356 353 337 275 182 115 127 81.4

source: Allekotte et al. (2024) 1) & Gores (2024) 2)

Here, with international flights coming close to pre-panemic levels again, fuel consumption of domestic flights shows a rather slow “recovery”, reaching only about 50% of its pre-pandemic level in 2022:

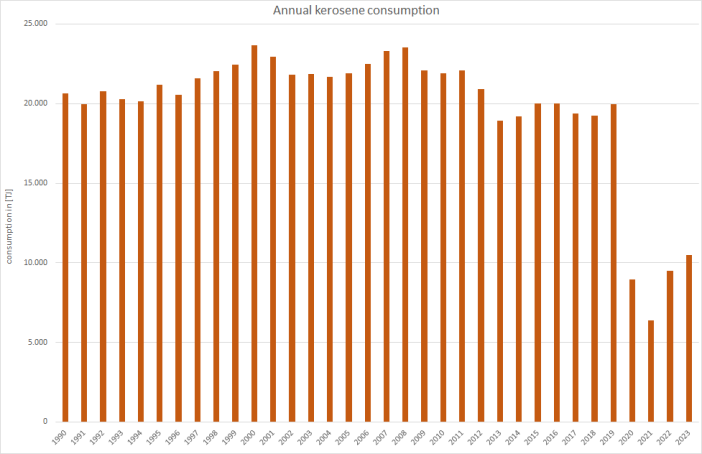

 Annual jet kerosene consumption

Emission factors

All country specific emission factors used for emission reporting were basically ascertained within UBA project FKZ 360 16 029 3) and have since then been compiled, revised and maintained in TREMOD AV (Allekotte et al. (2024)) 4).

For more information, please see the superordinate chapter on civil aviation.

Table 2: Annual country-specific emission factors, in kg/TJ

1990 1995 2000 2005 2010 2015 2016 2017 2018 2019 2020 2021 2022 2023
JET KEROSENE
NH3 3.98 3.95 3.95 3.97 3.97 3.97 3.97 3.97 3.97 3.97 3.97 3.97 3.97 3.97
NMVOC 16.0 17.6 18.6 20.1 21.1 23.7 19.0 19.7 20.5 23.7 36.3 35.8 28.2 21.2
NOx 330 367 340 334 368 379 391 392 388 390 357 358 375 376
SOx 19.7 19.5 19.5 19.6 19.6 19.6 19.6 19.6 19.6 19.6 19.6 19.6 19.6 19.6
BC 1.87 2.15 2.03 2.21 2.01 2.01 1.93 1.96 2.00 1.73 1.79 1.86 1.82 2.08
PM 3.89 4.49 4.23 4.60 4.19 4.18 4.02 4.08 4.16 3.61 3.74 3.88 3.79 4.33
CO 150 152 194 205 198 217 157 155 158 170 272 310 237 305
AVGAS
NH3 NE
NMVOC 594 593 594 593 592 594 592 591 591 589 588 587 582 595
NOx 150 149 149 150 149 150 149 149 149 147 147 147 146 150
SOx 0.46 0.46 0.46 0.46 0.46 0.46 0.46 0.46 0.46 0.46 0.46 0.46 0.46 0.46
BC 0.42 0.42 0.42 0.42 0.42 0.42 0.42 0.42 0.42 0.42 0.42 0.42 0.42 0.42
PM2.5, PM10 2.77 2.78 2.78 2.77 2.78 2.77 2.77 2.77 2.78 2.78 2.78 2.78 2.78 2.78
TSP 17.9 17.9 17.9 17.9 17.9 17.9 17.9 17.9 17.9 17.9 17.9 17.9 17.9 17.9
CO 20,142 20,216 20,229 20,160 20,305 20,208 20,265 20,286 20,319 20,478 20,495 20,526 20,701 20,217

1 EF(TSP) also applied for PM10 and PM2.5 (assumption: > 99% of TSP consists of PM2.5)
2 estimated via a f-BC of 0.48 as provided in EMEP/EEA (2023) 5), Chapter: 1.A.3.a, 1.A.5.b Aviation, Annex 3, Table A3.2 and Conclusion

For the country-specific emission factors applied for particulate matter, no clear indication is available, whether or not condensables are included.

For information on the emission factors for heavy-metal and POP exhaust emissions, please refer to Appendix 2.3 - Heavy Metal (HM) exhaust emissions from mobile sources and Appendix 2.4 - Persistent Organic Pollutant (POP) exhaust emissions from mobile sources.

Trend discussion for Key Sources

NFR 1.A.3.a ii (ii) - Domestic Civil Aviation - Cruise is not included in the national emission totals and hence not included in the key category analysis.

Recalculations

Activity data have been revised as a result of the slightly increased percental share of jet kerosene allocated to over-all domestic flights (see description of re-calculations in super-ordinate chapter on 1.A.3.a). Here, as slightly more jet kerosene is allocated to NFR 1.A.3.a ii for 2022, the amounts allocated to NFR sub-categories 1.A.3.a ii(i) and 1.A.3.a ii(ii) have been increased accordingly.

Table 3: Revised annual fuel consumption in 1.A.3.a ii (ii), in terajoules

1990 1995 2000 2005 2010 2015 2016 2017 2018 2019 2020 2021 2022
JET KEROSENE
current submission 20,637 21,207 23,646 21,929 21,892 19,993 20,010 19,366 19,259 19,956 8,952 6,401 9.485
previous submission 20,637 21,207 23,646 21,929 21,892 19,993 20,010 19,366 19,259 19,956 8,952 6,401 9.481
absolute change 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 3.29
relative change 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.03%
AVGAS
current submission 1,833 858 843 523 427 429 356 353 337 275 182 115 127
previous submission 1,833 858 843 523 427 429 356 353 337 275 182 115 127
absolute change 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00
relative change 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00%

In addition, rather small revisions occur for several country-specific emission factors derived from Allekotte et al. (2024) 6) and for 2022.

Table 4: Revised annual country-specific emission factors for jet kerosene in 1.A.3.a ii (ii), in [kg/TJ]

1990 1995 2000 2005 2010 2015 2016 2017 2018 2019 2020 2021 2022
AMMONIA
current submission 3.98 3.95 3.95 3.97 3.97 3.97 3.97 3.97 3.97 3.97 3.97 3.97 3.97
previous submission 3.98 3.95 3.95 3.97 3.97 3.97 3.97 3.97 3.97 3.97 3.97 3.97 3.97
absolute change 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00
relative change 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00%
NMVOC
current submission 16.0 17.6 18.6 20.1 21.1 23.7 19.0 19.7 20.5 23.7 36.3 35.8 28.23
previous submission 16.0 17.6 18.6 20.1 21.1 23.7 19.0 19.7 20.5 23.7 36.3 35.8 28.24
absolute change 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 -0.01
relative change 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% -0.03%
NITROGENE OXIDES
current submission 330 367 340 334 368 379 391 392 388 390 357 358 375
previous submission 330 367 340 334 368 379 391 392 388 390 357 358 375
absolute change 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.04
relative change 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.01%
SULPHUR OXIDES
current submission 19.7 19.5 19.5 19.6 19.6 19.6 19.6 19.6 19.6 19.6 19.6 19.6 19.6
previous submission 19.7 19.5 19.5 19.6 19.6 19.6 19.6 19.6 19.6 19.6 19.6 19.6 19.6
absolute change 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00
relative change 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00%
BLACK CARBON
current submission 1.87 2.15 2.03 2.21 2.01 2.01 1.93 1.96 2.00 1.73 1.79 1.86 1.8207
previous submission 1.87 2.15 2.03 2.21 2.01 2.01 1.93 1.96 2.00 1.73 1.79 1.86 1.8204
absolute change 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.0003
relative change 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.02%
PARTICULATE MATTER
current submission 3.89 4.49 4.23 4.60 4.19 4.18 4.02 4.08 4.16 3.61 3.74 3.88 3.793
previous submission 3.89 4.49 4.23 4.60 4.19 4.18 4.02 4.08 4.16 3.61 3.74 3.88 3.792
absolute change 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.001
relative change 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.02%
CARBON MONOXIDE
current submission 150 152 194 205 198 217 157 155 158 170 272 310 237.03
previous submission 150 152 194 205 198 217 157 155 158 170 272 310 237.10
absolute change 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 -0.07
relative change 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% -0.03%

For pollutant-specific information on recalculated emission estimates for Base Year and 2022, please see the recalculation tables following chapter 8.1 - Recalculations.

Uncertainties

For information on uncertainties, please see the main chapter on civil aviation.

Planned improvements

For information on planned improvements, please see main chapter on civil aviation.


1), 4), 6) Allekotte et al. (2024): TREMOD Aviation (TREMOD AV) - Revision des Modells zur Berechnung des Flugverkehrs (TREMOD-AV). Heidelberg, Berlin: Ifeu Institut für Energie- und Umweltforschung Heidelberg GmbH & Öko-Institut e.V., Berlin & Heidelberg, 2024.
2) Gores, S. (2024): Inventartool zum deutschen Flugverkehrsinventar 1990-2023, im Rahmen der Aktualisierung des Moduls TREMOD-AV im Transportemissionsmodell TREMOD, Berlin, 2024.
3) Knörr, W., Schacht, A., & Gores, S. (2010): Entwicklung eines eigenständigen Modells zur Berechnung des Flugverkehrs (TREMOD-AV): Endbericht. Endbericht zum F+E-Vorhaben 360 16 029, URL: https://www.umweltbundesamt.de/publikationen/entwicklung-eines-modells-zur-berechnung; Berlin & Heidelberg, 2012.
5) EMEP/EEA (2023): EMEP/EEA air pollutant emission inventory guidebook 2023, Chapter 1.A.3.a, 1.A.5.b Aviation, https://www.eea.europa.eu/en/analysis/publications/emep-eea-guidebook-2023/part-b-sectoral-guidance-chapters/1-energy/1-a-combustion/1-a-3-a-aviation-2023/@@download/file; Copenhagen, 2023
