1.A.4.a i - Commercial and Institutional: Stationary Combustion

Short description

The source category 1.A.4.a.i - Commercial and Institutional: Stationary Combustion emissions from commercial and institutional combustion installations are reported.

Category Code Method AD EF
1.A.4.a.i T2, T3 NS CS, D
Key Category SO₂ NOₓ NH₃ NMVOC CO BC Pb Hg Cd Diox PAH HCB TSP PM₁₀ PM₂ ₅
1.A.4.a.i -/- -/- -/- L/T L/T -/- L/- -/- -/- L/- L/T -/- L/T L/T L/T

Click to view Legend

Click to hide Legend

T = key source by Trend L = key source by Level

Methods
D Default
RA Reference Approach
T1 Tier 1 / Simple Methodology *
T2 Tier 2*
T3 Tier 3 / Detailed Methodology *
C CORINAIR
CS Country Specific
M Model
* as described in the EMEP/CORINAIR Emission Inventory Guidebook - 2007, in the group specific chapters.
AD - Data Source for Activity Data
NS National Statistics
RS Regional Statistics
IS International Statistics
PS Plant Specific data
AS Associations, business organisations
Q specific questionnaires, surveys
EF - Emission Factors
D Default (EMEP Guidebook)
C Confidential
CS Country Specific
PS Plant Specific data

Methodology

Activity data

For further information on activity data please refer to the superordinte chapter on small stationary combustion.

Emission factors

For further information on the emission factors applied please refer to the superordinte chapter on small stationary combustion.

Table 1: Emission factors for commercial and institutional combustion installations

Pollutant NOx SOx CO NMVOC TSP PM10 PM2.5 PAH PCDD/F
Fuel [kg/TJ] Fuel [kg/TJ]
Hard Coal 89.8 331.7 2,162 30.3 18.5 17.6 15.7 60,000 16.3
Residual Wood 92.7 8.2 931.5 66.8 46.5 44.6 40.0 430,000 355.3
Light Heating Oil 43.7 3.3 11.9 2.3 1.0 1.0 1.0 160.7 2.7
Natural Gas 22.0 0.1 12.0 0.4 0.03 0.03 0.03 40.0 1.6

TSP and PM emission factors are to a large extend based on measurements without condensed compounds, according to CEN-TS 15883, annex I. PAH measurement data contain the following individual substances: Benzo(a)pyrene, Benzo(k)fluoranthene, Indeno(1,2,3-cd)pyrene, Benzo(b)fluoranthene, Benzo(j)fluoranthene, Benzo(ghi)perylene, Anthracene, Benzo(a)anthracene, Chrysene(+Trihenylene) and Dibenz(a,h)anthracene, as a specific part of US EPA.

Trend Discussion for Key Sources

The following charts give an overview and assistance for explaining dominant emission trends of selected pollutants.

Fuel Consumption

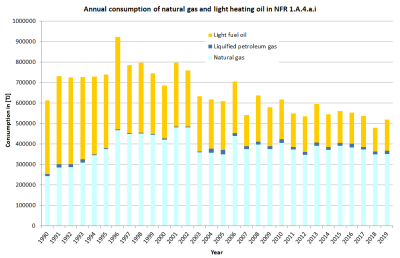

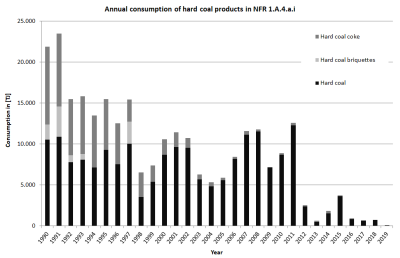

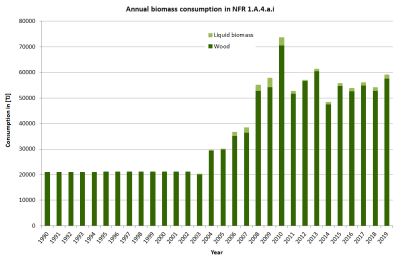

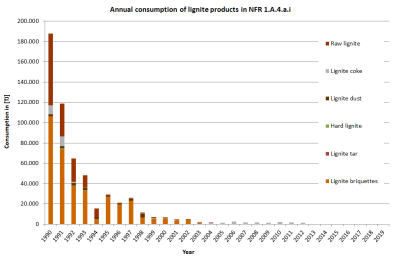

Annual consumption of lignite products in NFR 1.A.4.a.i Annual consumption of hard coal products in NFR 1.A.4.a.i Annual consumption of natural gas and light heating oil in NFR 1.A.4.a.i Annual consumption of liquid biomass and wood in NFR 1.A.4.a.i

Annual fluctuations of all fuel types in source category 1.A.4 depend on heat demand subject to winter temperatures. From 1990 to the present time, fuel use changed considerably from coal & lignite to natural gas. The consumption of light heating oil decreased as well. As the activity data for light heating oil is based on the sold amount, it fluctuates due to fuel prices and changing storage amounts. The remarkable decrease of hard coal consumption in 2012 is caused by a change in statistics (data source). It's planned to revise the NEB back to 2003 in order to assure time series consistency.

Non-Methane Volatile Organic Compounds - NMVOC and Carbon monoxide - CO

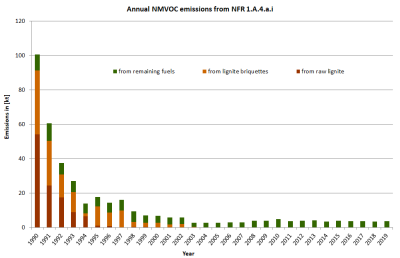

Annual NMVOC emissions in NFR 1.A.4.a.i Annual NMVOC emissions in NFR 1.A.4.a.i

Main driver of the NMVOC and CO emission trends is the decreasing lignite consumption: Since 1990 the fuel use changed from solid fuels causing high NMVOC and CO emissions to gaseous fuels producing much lower emissions.

Particulate Matter - PM2.5 & PM10 & TSP

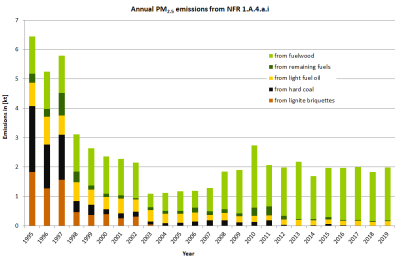

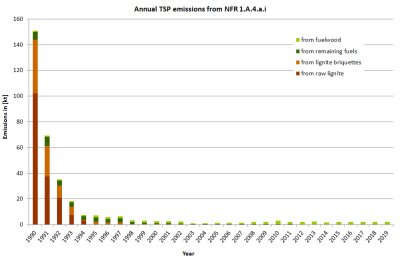

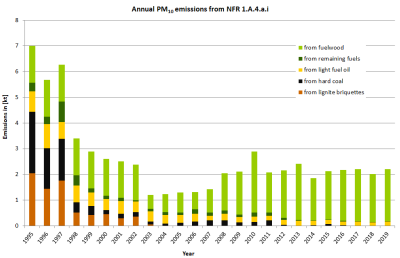

Annual PM2.5 emissions in NFR 1.A.4.a.i Annual PM10 emissions in NFR 1.A.4.a.i Annual TSP emissions in NFR 1.A.4.a.i

The emission trends for PM2.5, PM10, and TSP are also influenced severely by decreasing coal consumption in small combustion plants, particularly in the period from 1990 to 1994. Since 1995 the emission trend hardly changed. Increasing emissions in the last years are caused by the rising wood combustion.

Persistent Organic Pollutants

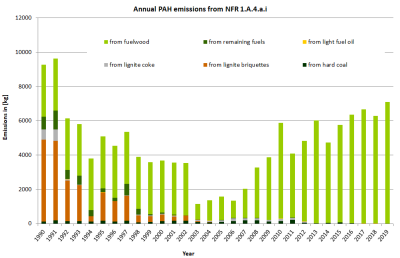

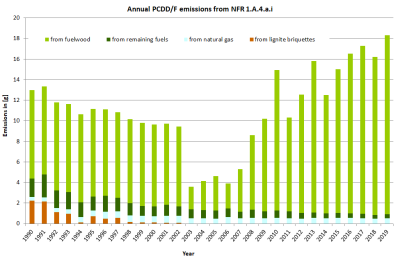

Annual PCDD/F emissions in NFR 1.A.4.a.i Annual PAH emissions in NFR 1.A.4.a.i

The main driver of the POPs emission trend are coal and fuel-wood. PCDD/F emissions decrease from 1990 to 2003 due to decreasing lignite consumption. The use of firewood and therefore PCDD/F emissions from wood combustion show a constant development.

Recalculations

Recalculations were necessary for the latest reference year (2018) due to the availability of the National Energy Balance. Germany has a federal structure which causes a time lack of the National Energy Balance. Therefore recalculations are always necessary. Further recalculations are a result of the Revision of PAH Emission factors.

For specific information on recalculated emission estimates for Base Year and 2018, please see the pollutant specific recalculation tables following chapter 8.1 - Recalculations.

Planned improvements

There is a running Project on new emission factors for small combustion plants using updated data from chimney sweepers and new measurement data.
